Cadence sensor
Cadence sensor
Standard in US RX bikes.

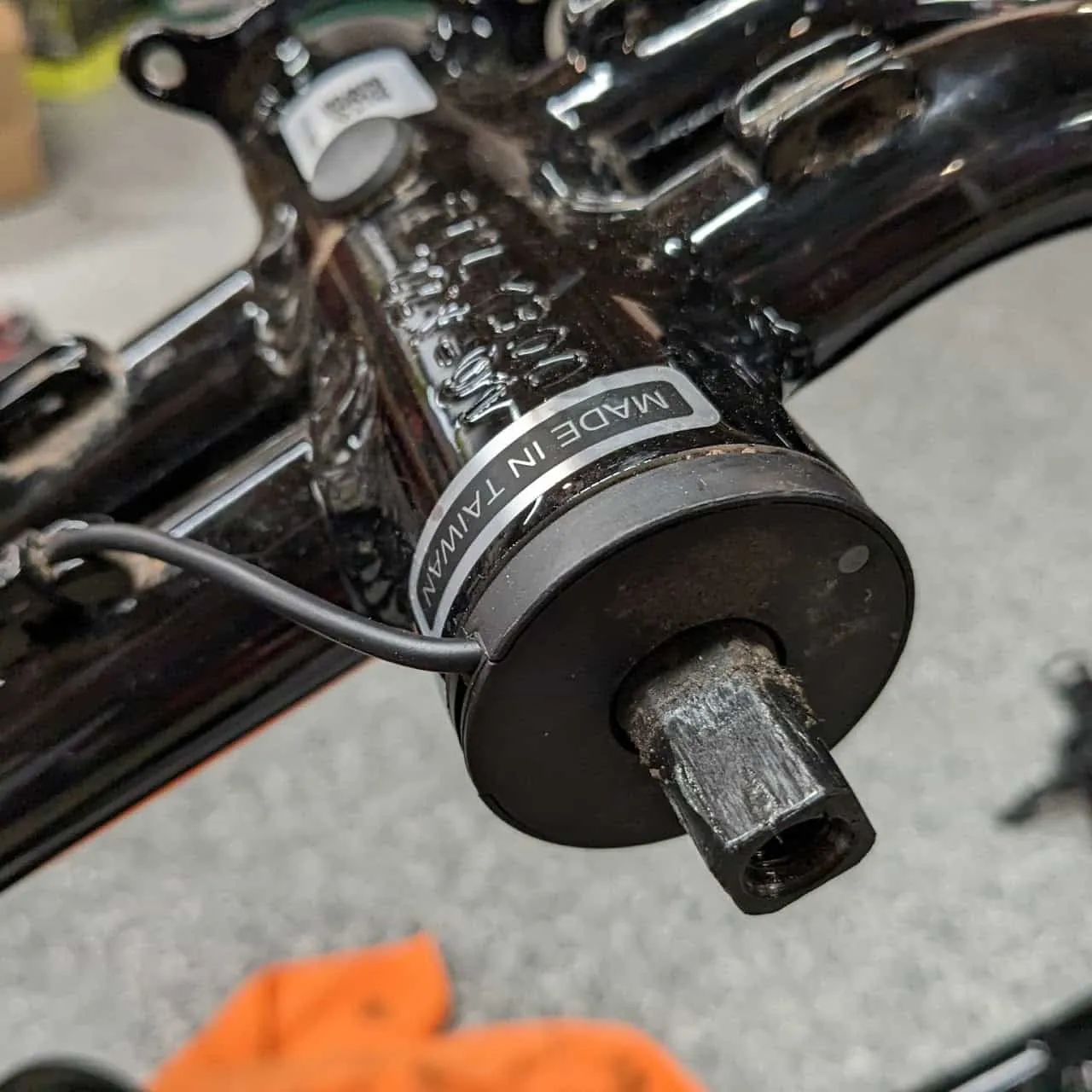

Installation position. Red light will turn on when bike is on and cranks are turned.

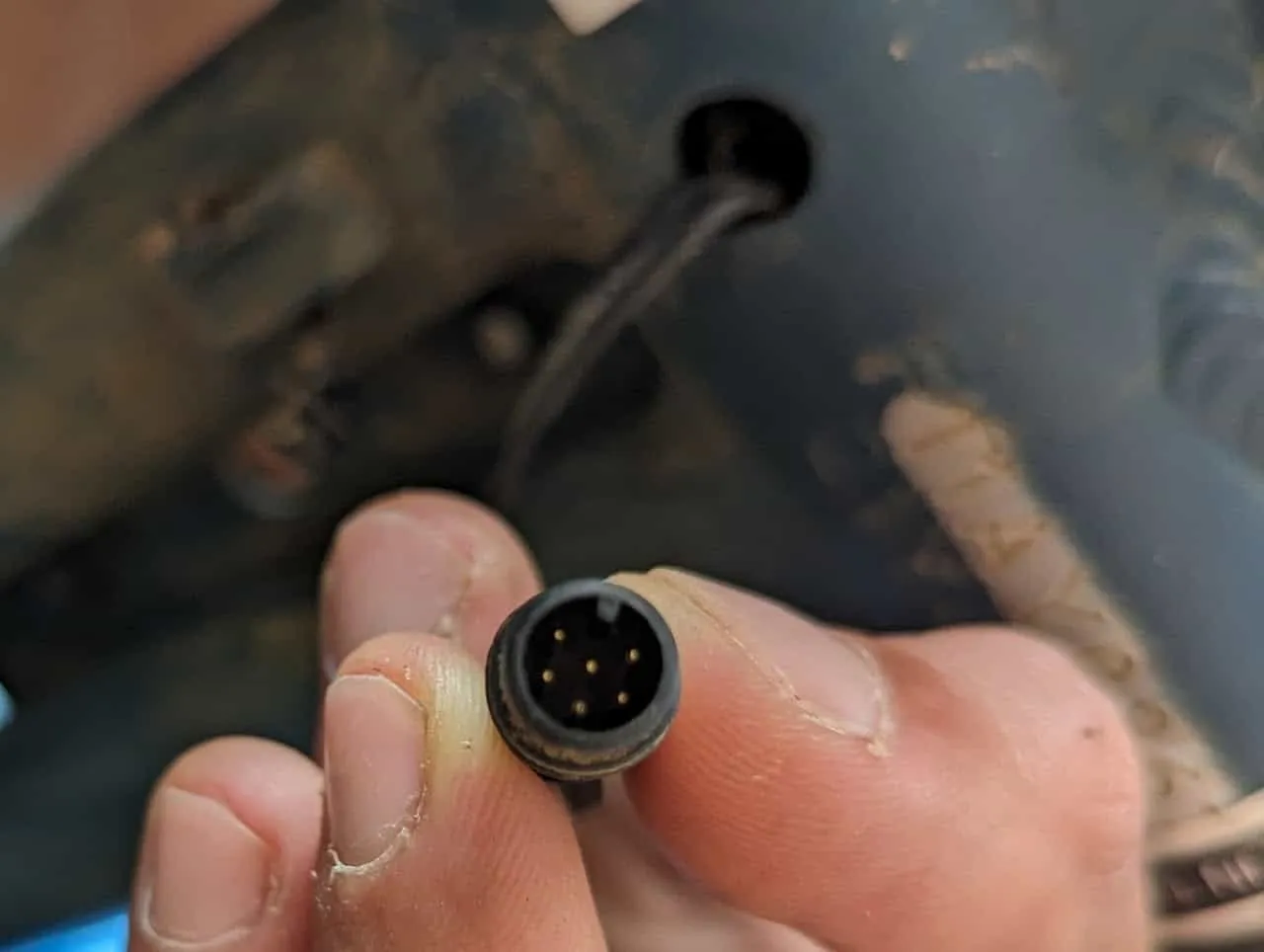

6 pole Higo Mini B connector

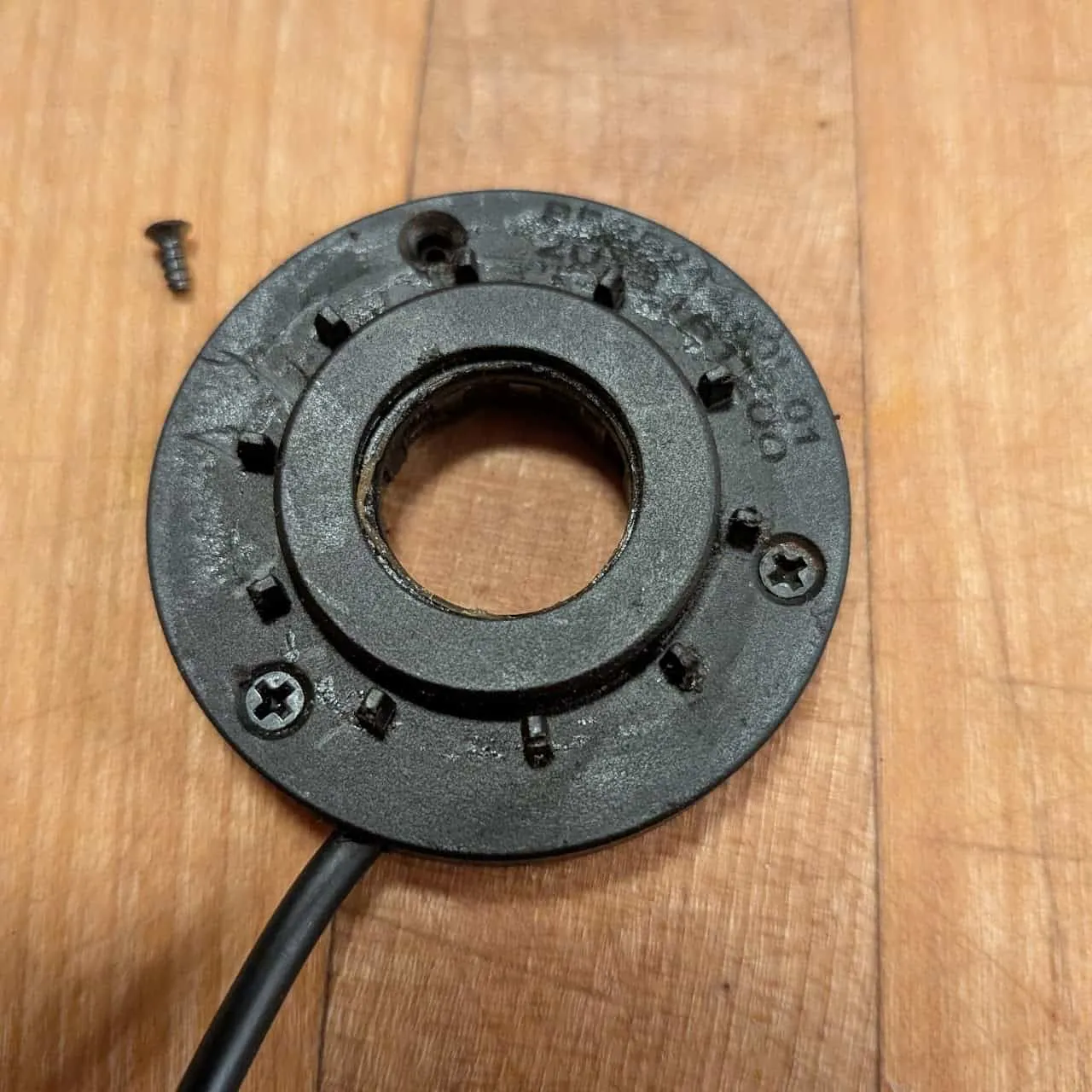

Faulty sensor, note the rust, part number BBSS24-L50L-01

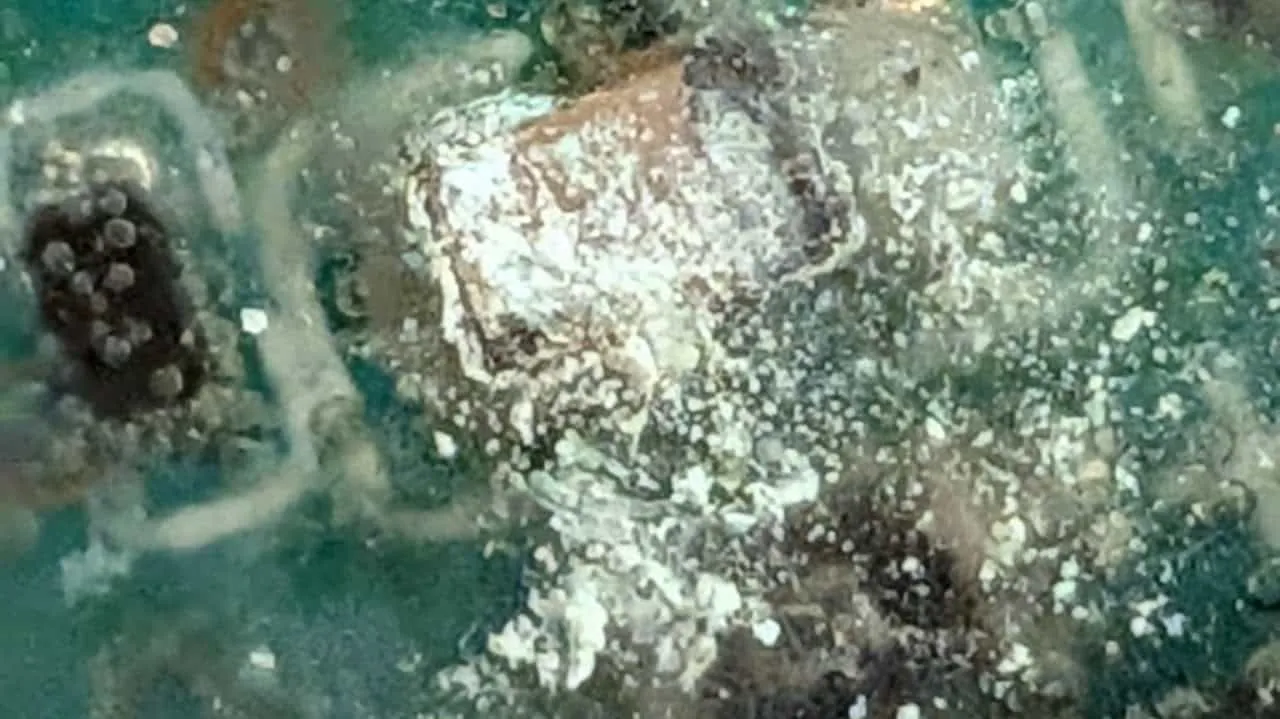

That white stuff is good, right?

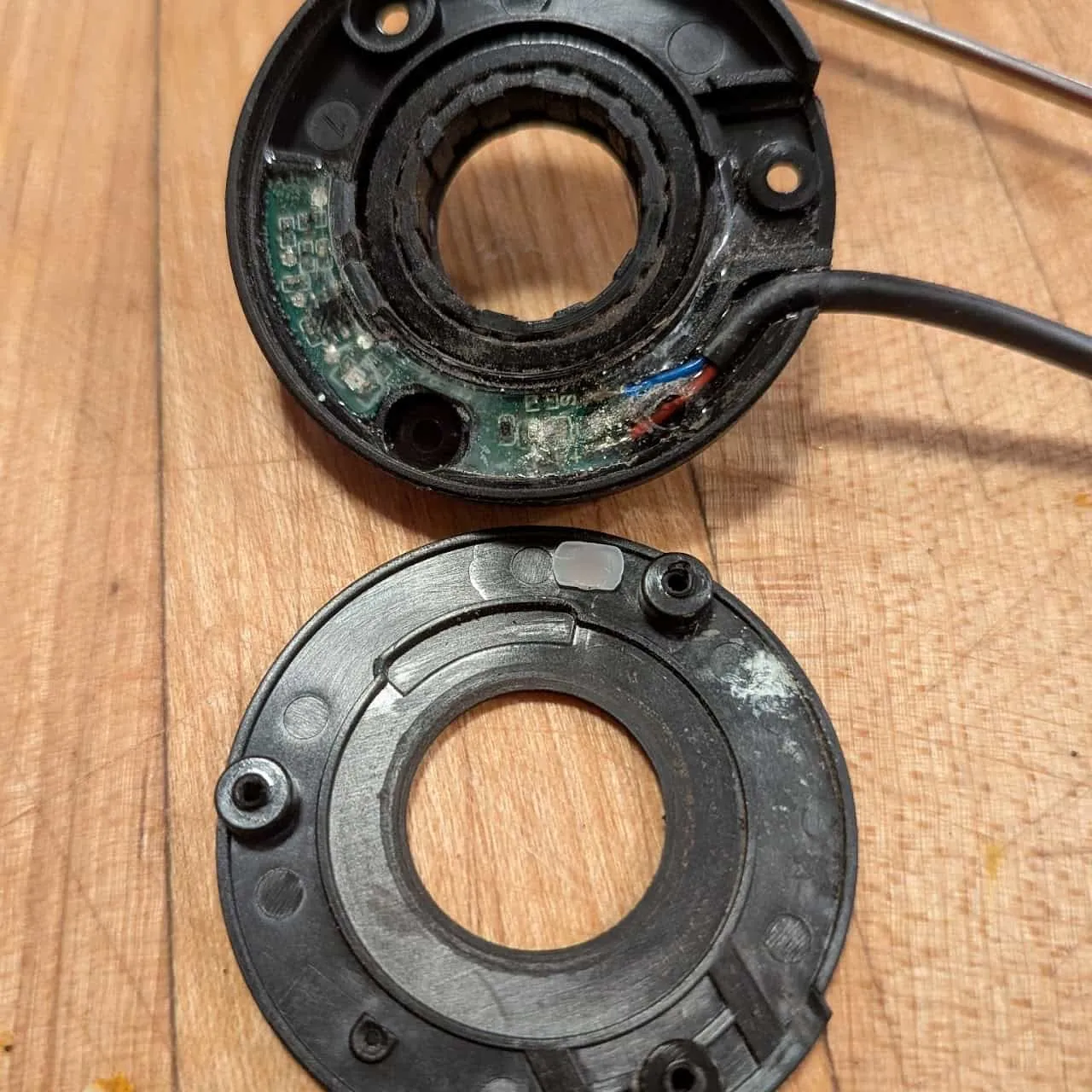

Cadence Sensor Failure
Cadence Sensor Failure
They don't like water.
Torque Sensor
Torque Sensor

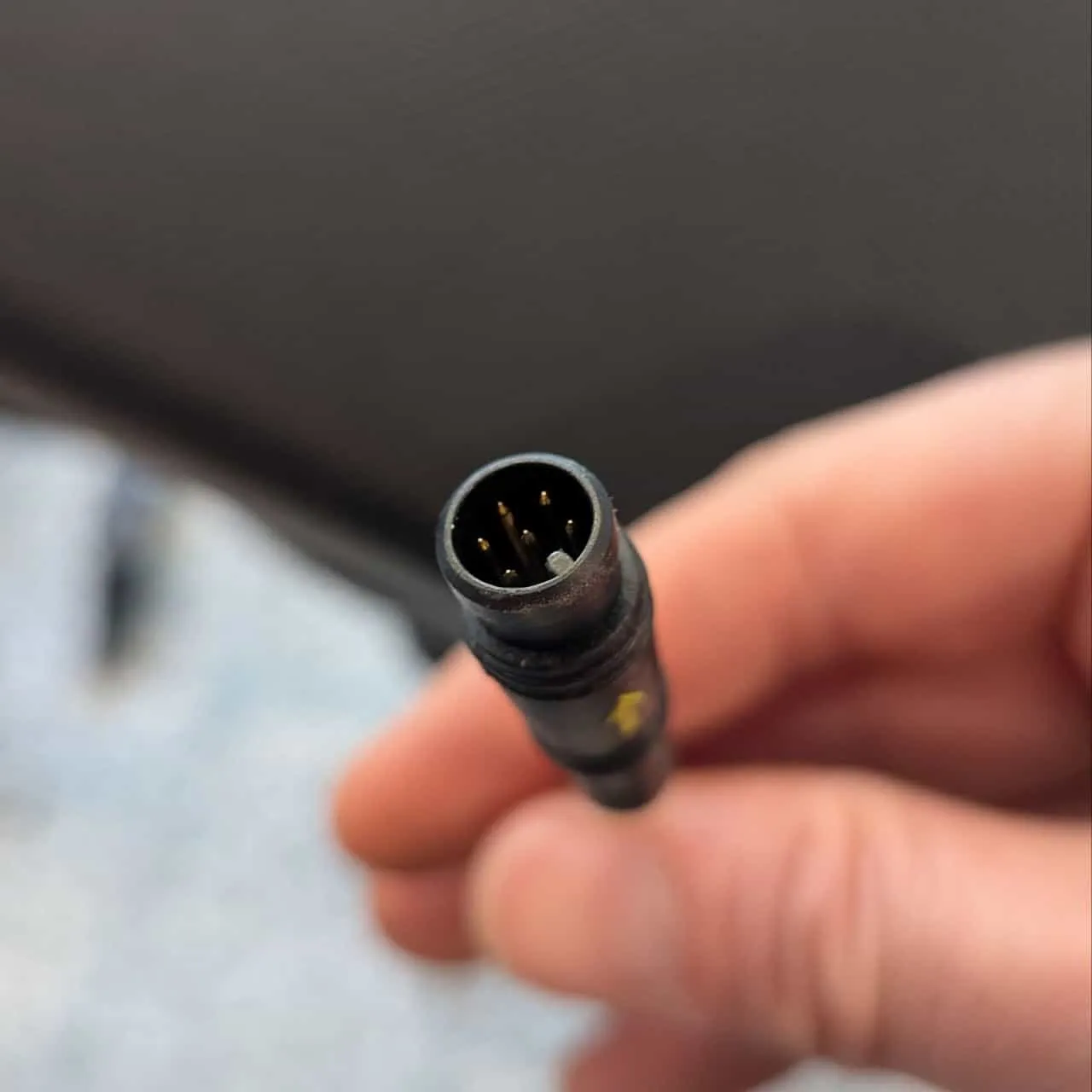

Torque sensor connector
Torque sensor connector
Unknown (~5V)
Unknown (~5V)
Unknown
Unknown (~6V)
GND
Unknown (GND?)
