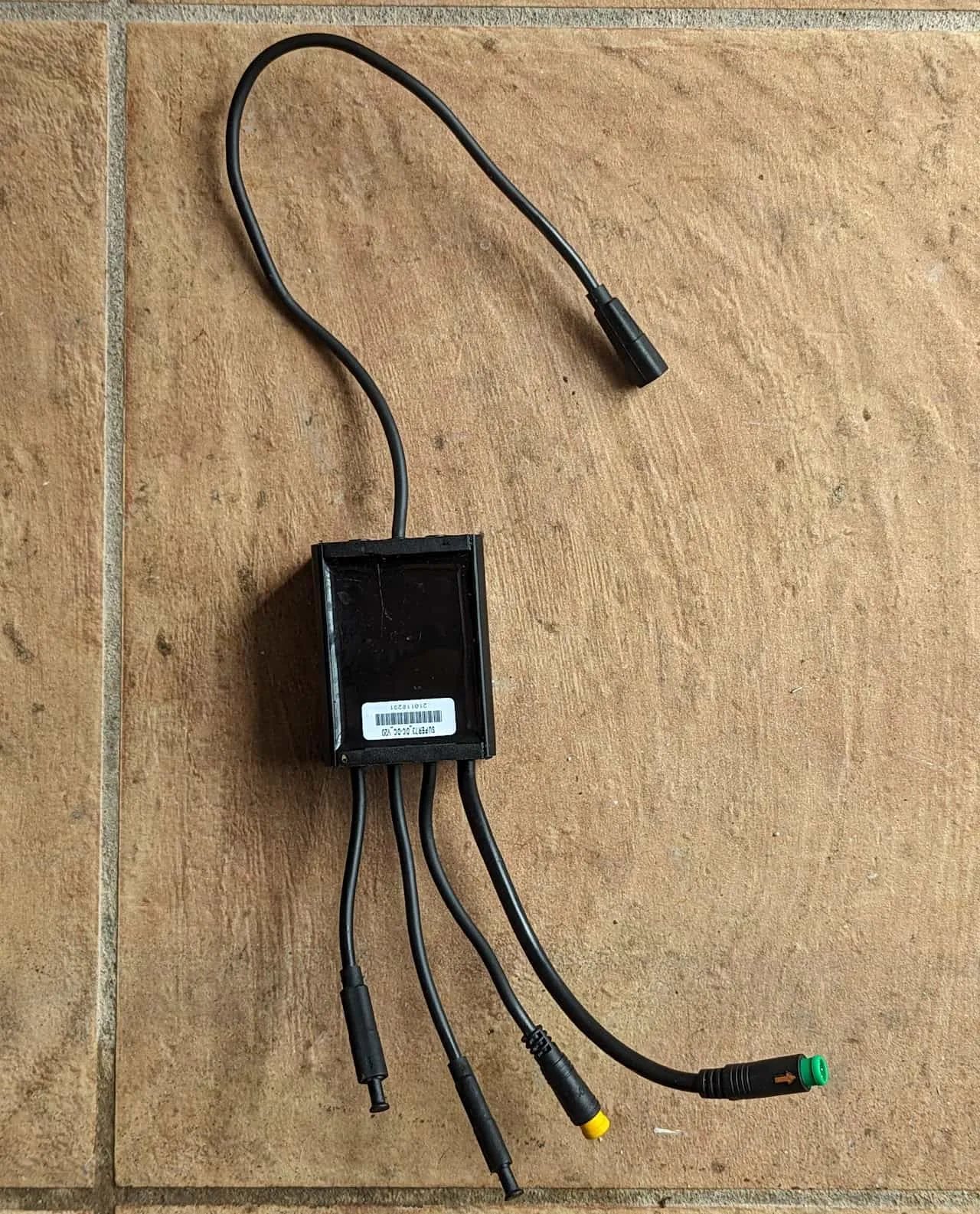

This module is attached to the main controller and converts the controller's 48V to 12V. It manages all 12V peripherals and is controlled through a CAN bus.
Marked: "SUPER73_DC_DC_V20" "210118231"
The module will not output 12V at all unless its CAN bus is connected to the controller, even if provided with 48V. Hence it can't be used in an aftermarket setup.
Rear break light connector
Turn signal connectors (unused)

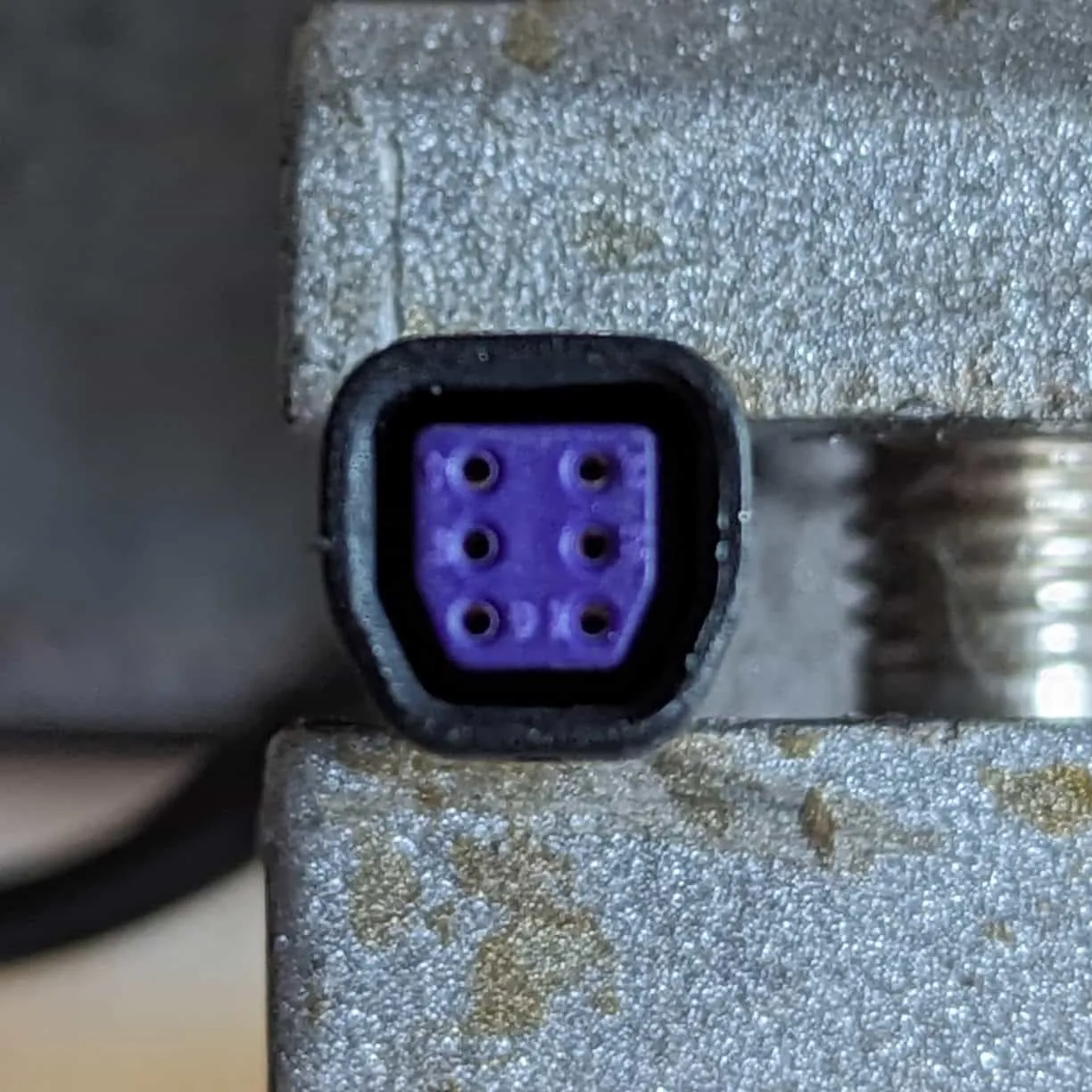

Unknown
CAN L
GND
Battery + (common with controller, debug 1)
CAN H

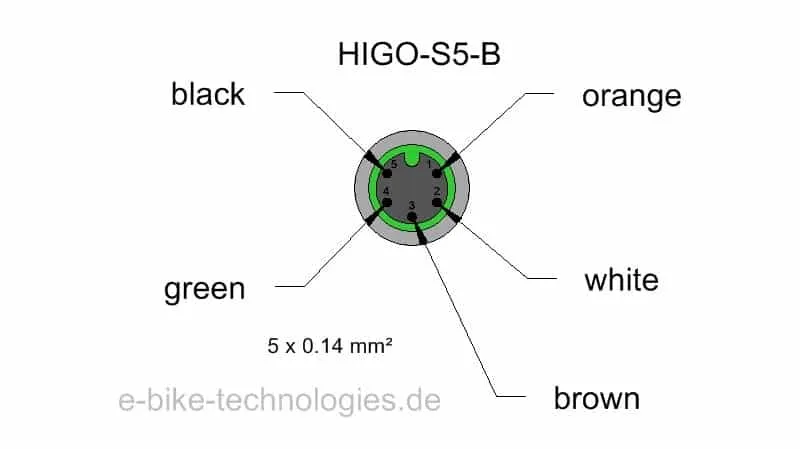

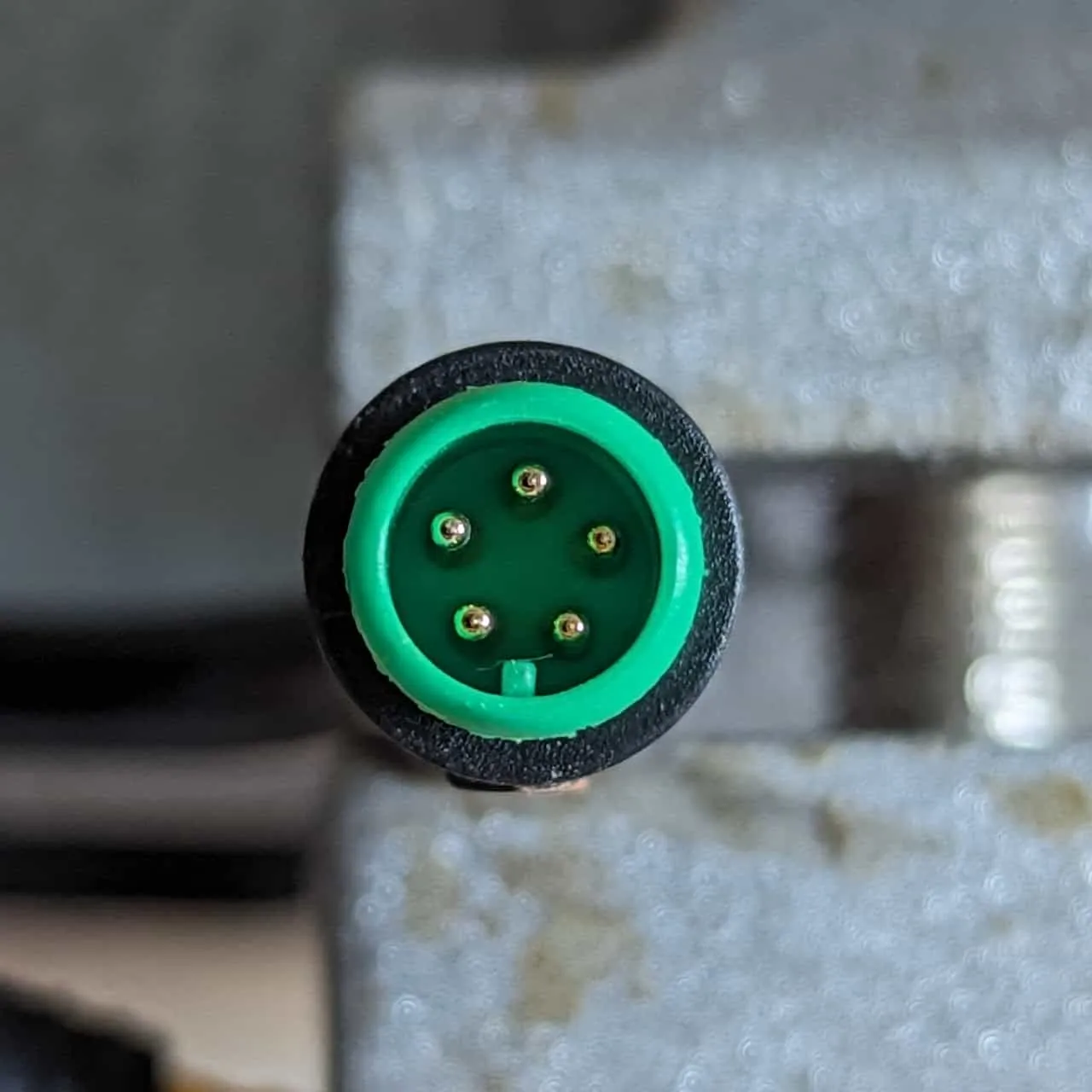

Turn signal
Signal 2
Horn
Unknown
GND
Signal 1

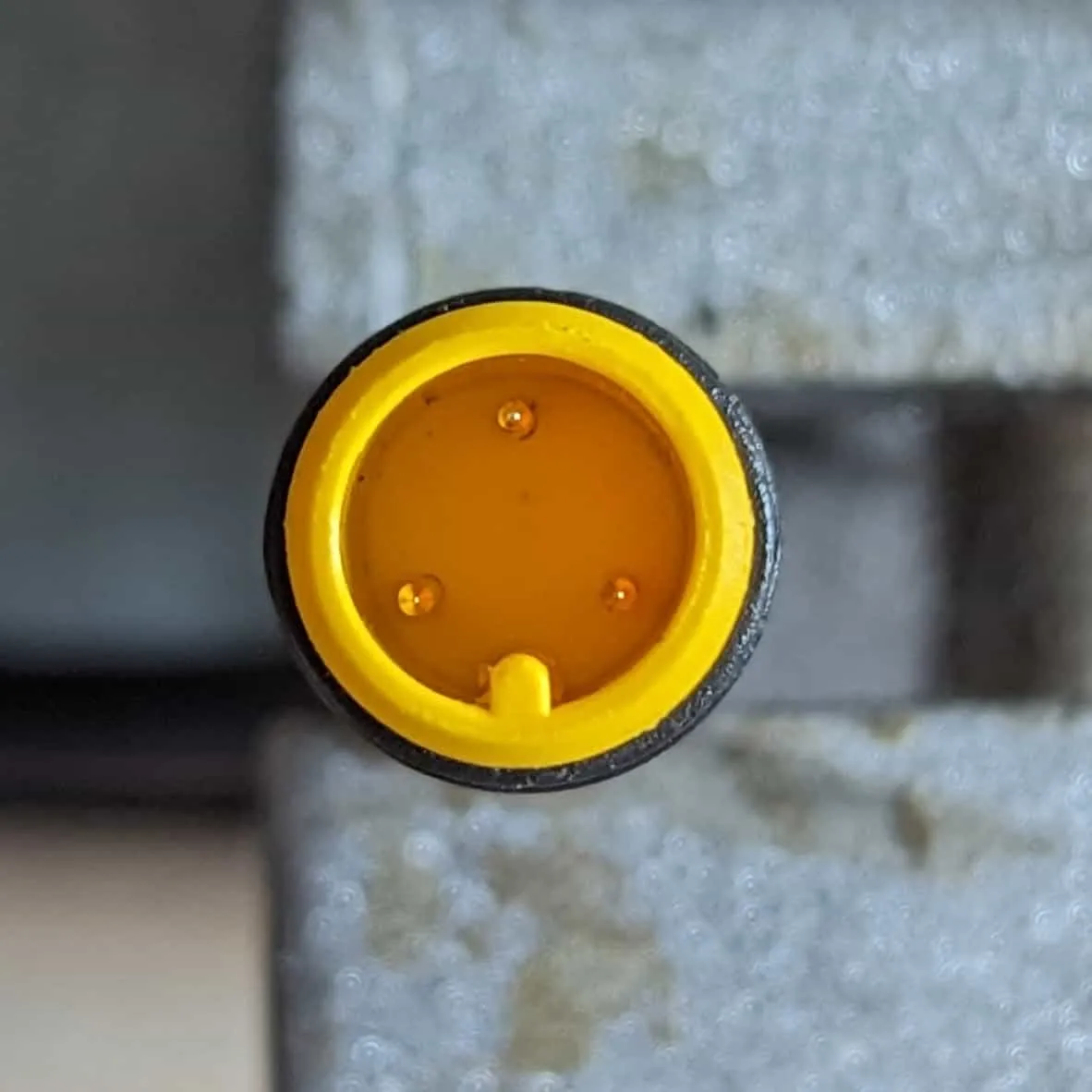

Rear brake light connector
Rear brake light connector
Ground
Signal
12V

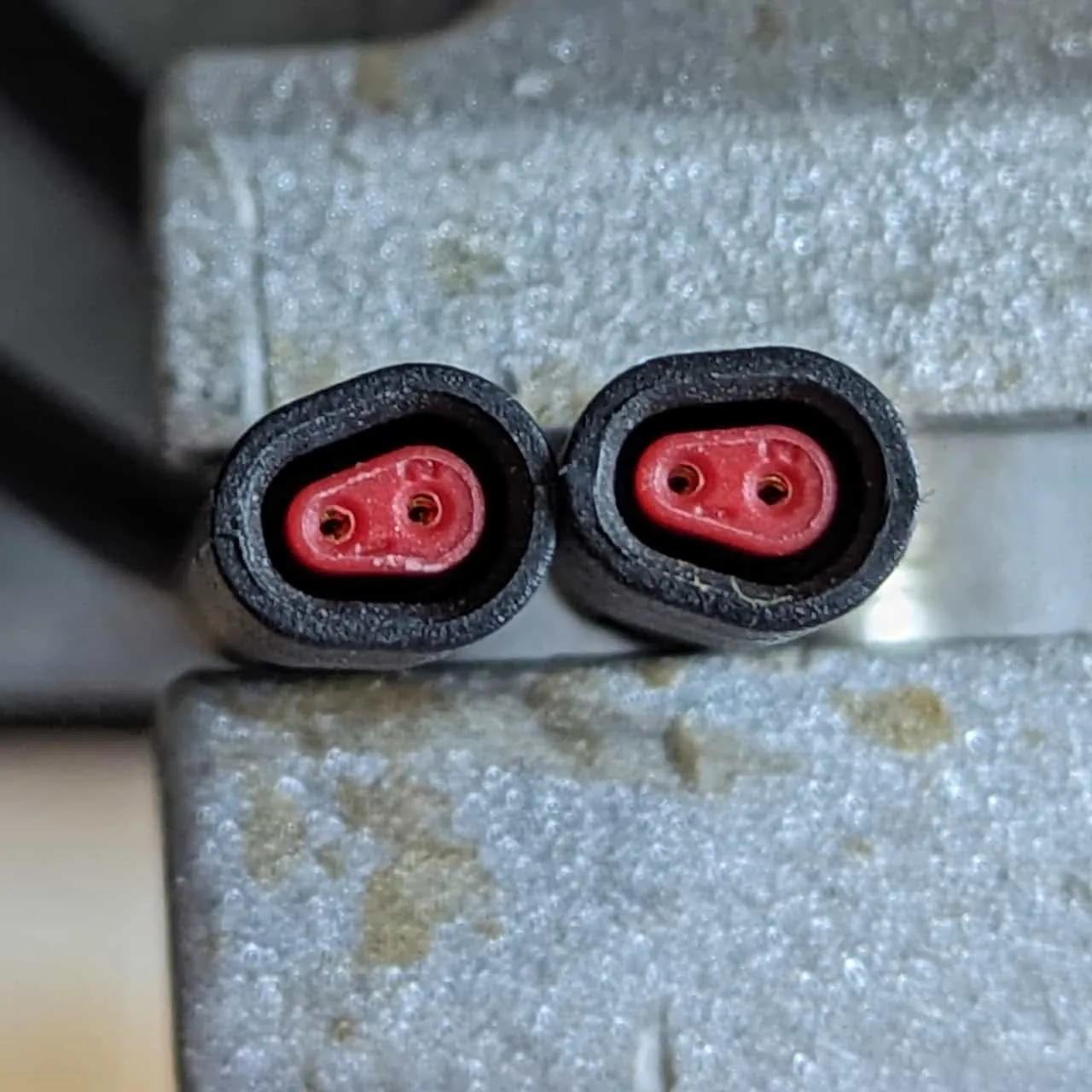

Turn signal connectors (unused)
Turn signal connectors (unused)
GND
12V
